Setting up the GA4 integration with Google Tag Manager
If you're using Google Tag Manager (GTM) to load your GA4 tag, you'll need to do some additional setup to track Olark events in GA4.
This article assumes you've already:
- set up your GTM container
- installed GTM on your website
- are using GTM to load your GA4 script on your website
Getting started
Log in to your Google Tag Manager dashboard and select the Container you've installed on your website.

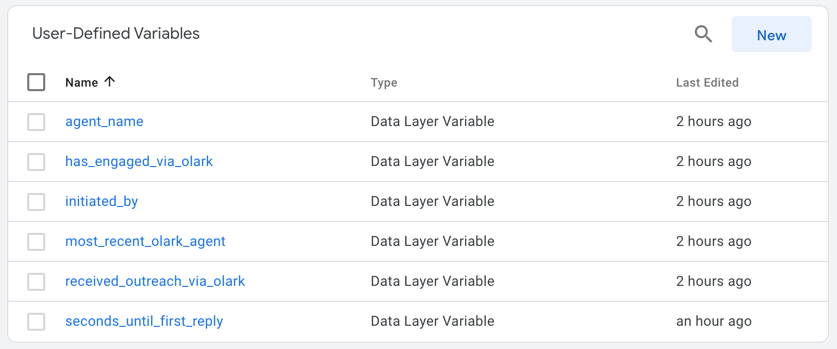

In the Variables tab, set up the variables
Each variable should be the "Data Layer Variable" type.
The variable name should be the same in both name fields. Take care that they match the following names exactly:
- agent_name
- initiated_by
- seconds_until_first_reply
- has_engaged_via_olark
- most_recent_olark_agent
- received_outreach_via_olark

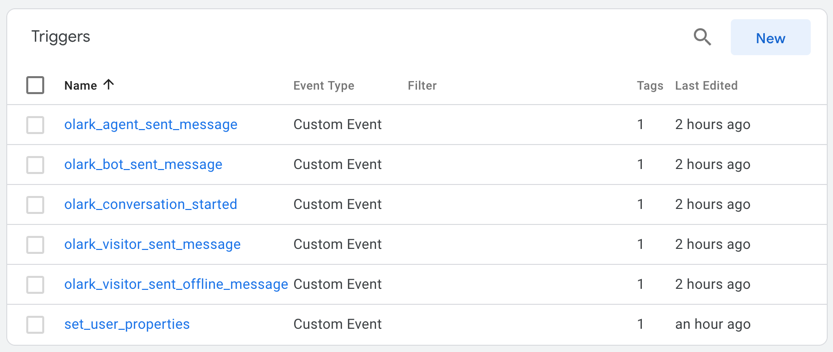

In the Triggers tab, set up the triggers
Each trigger should be the "Custom Event" trigger type.
Set each trigger to fire on All Custom Events.
The trigger name should be the same in both name fields. Take care that they match the following names exactly:
- olark_agent_sent_message
- olark_bot_sent_message
- olark_conversation_started
- olark_visitor_sent_message
- olark_visitor_sent_offline_message
In the Tags tab, create a tag with these settings
- Tag type: Google Analytics: GA4 Event
- Configuration tag: None - Manually Set ID
- Measurement ID: copy your GA4 measurement ID here, it should start with a G-
- Event Name: click the building block icon and choose the "Event - Custom Event" option.
In the Event Parameters section, click the building block icon and add the following variables that you set up previously:
- agent_name
- initiated_by
- seconds_until_first_reply
In the User Properties section, click the building block icon and add each of the following variables:
- has_engaged_via_olark
- most_recent_olark_agent
- received_outreach_via_olark
In the Triggering section, choose each of the following firing triggers that you set up previously:
- olark_agent_sent_message
- olark_bot_sent_message
- olark_conversation_started
- olark_visitor_sent_message
- olark_visitor_sent_offline_message

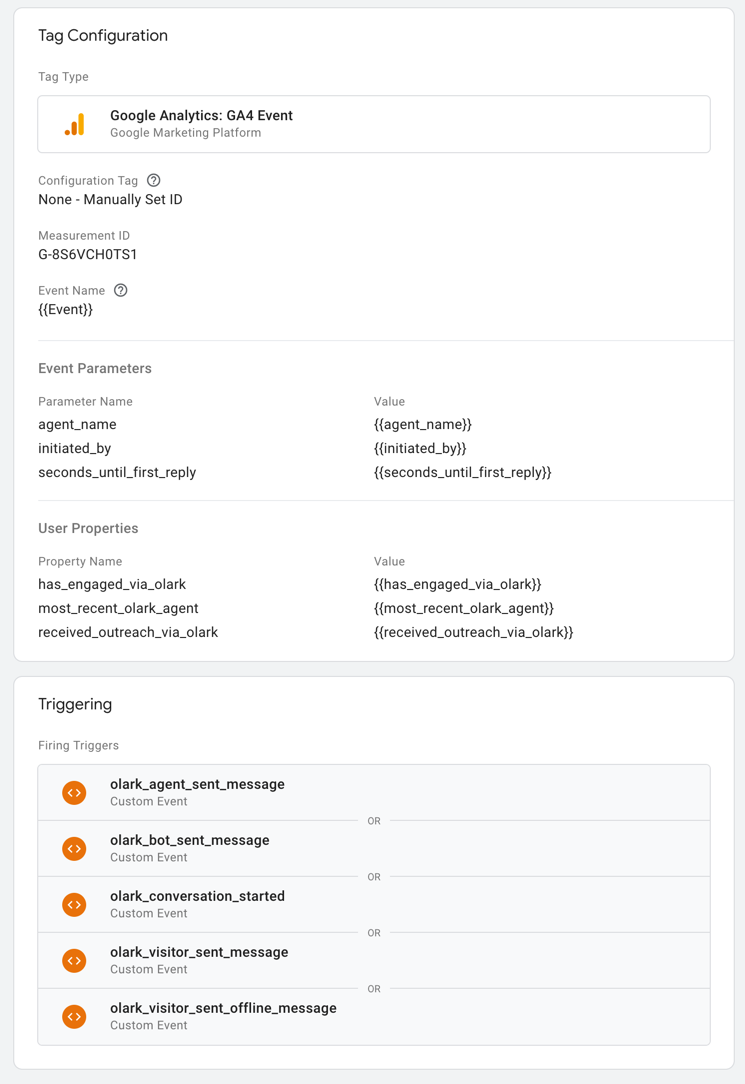

It should look like this:
Save and preview your changes
- Click "Save" in the upper right of the screen
- You can use the "Preview" function in GTM to confirm that Olark chats are firing your tags and the events are being routed to your GA4 property.
Publishing your changes
- Once you've confirmed the tags are set up and working make sure you click SUBMIT in GTM to publish the tag set up to your website.
